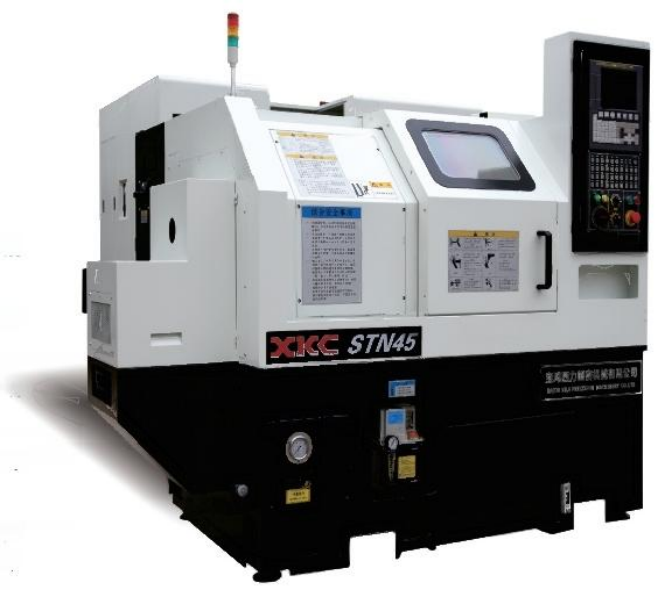

STN45/45M/45Y
FLAT BED TURRET CNC LATHE
★Flatbed head box structure and integrated design compact integral rigid sliding saddle.
★High rigid spindle bearing spindle configuration has good rigidity and accuracy of jump diameter 0.003orless, rotating speed of 5000r/min.
★STN45 with 8 location servo tool turret, Hector's three gear platepositioning. hydraulic lock, waterproof,dust preventionperformance is good, indexing,positioning,locking fastand reliable. STN45M adopts a 12 station servo power turret, which can be installed with BMT45 tool holder to achieve turning and milling composite processing.
MACHINE SPECIFICATION PARAMETERS
項目ITEM | STN45 | STN45M | STN45Y（待定） | |
加工能力 Capacity | 最大的回轉直徑 Max. swing diaover bed | φ450mm | φ540mm | |
最大加工直徑 Max process diameter | φ200mm | φ200mm | ||
最大加工長度 Max process length | 260mm | 200mm | ||
主軸通孔直徑Spindle through hole diameter | φ45mm | φ45mm | ||
主軸 Spindle | 主電機功率(連續/30min) Spindle motor | 5.5/7.5KW | 5.5/7.5KW | |
主軸端部形式 Spindle nose type | φ140mm | φ140mm | ||
主軸最高轉速 Max spindle speed | 5000r/min | 5000r/min | ||
卡盤尺寸 Chuck size | 6"(中空)(Hollow) | 6"(中空)(Hollow) | ||
刀塔 Turret | 刀塔形式 Turret type | 伺服刀塔servo motor | 伺服動力刀塔 Servo powered turret | |
刀位數 Number of stations | 8 | 12 | ||
刀具尺寸 Tool size | 20×20/φ32mm | 20×20/φ32mm | ||
尾座 Tailstock | 頂尖錐度 Center taper | MT4(選配Optional) | MT4(選配Optional) | |
快移速度Rapid feed | X/Z軸快進速度 Axis traverse | 20/24m/min | 20/24m/min | |
冷卻 Cooling | 電機功率 Power | 370W | 370W | |
冷卻箱容積 Cooling tank volume | 100L | 100L | ||
其它 Others | 機床尺寸(長×寬×高) Floor Space | 2000×1550×1700mm | 2000×1650×1700mm | |
機床重量 Mass of machine | 約2300kg about 2300kg | 約2400kg about 2400kg | ||
